- 3 phase gang operation
- Full Load Current Breaking
- Transformer Magnetizing Current Switching
- Cable Charging Current Switching

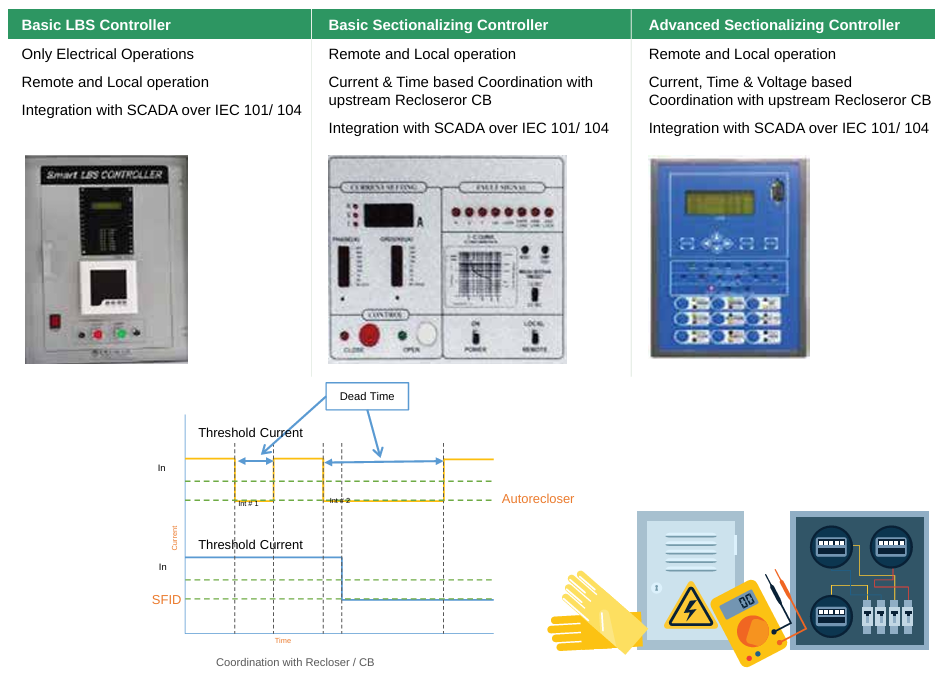

- Automatic Sectionalising Operation with integrated CT
- Optional Integrated CVTs for Voltage
- Field proven heavy duty operating mechanism
- Front panel as well as remote configuration of protections
- Lowest cost of maintenance
- Rugged yet simple mechanism
- All parts are site replaceable
- Basic manual switch can be upgraded to fully automated unit at site
- Easy installation with supplied brackets

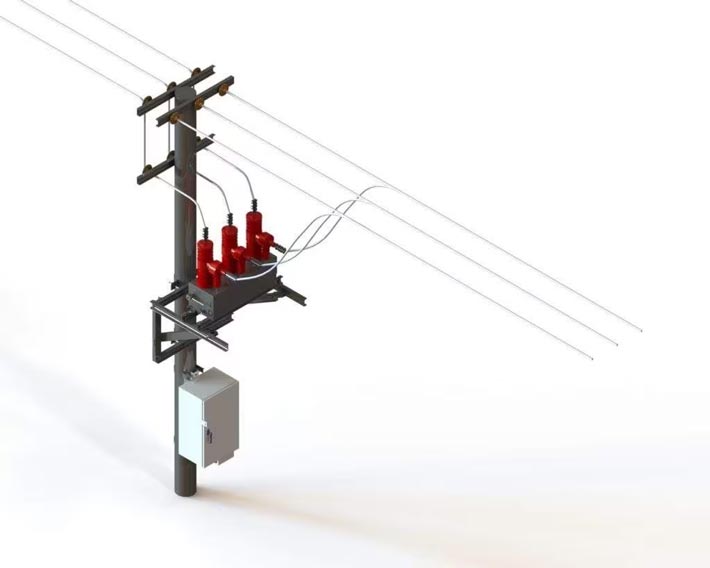

- Suitable for Single / double pole / Structure mounting
- Industrial Grade Plug n Play control cabling
- Can be supplied with customized accessories – bird guards, PG Clamps, Covered Conductor tails etc.
- The design ORC unit, capable of handling the mobility caused by ageing.
- Provides reliable circuit interruption performance without external arc or flame.
- Prevents switch from arc caused by switching load currents 400/630A at rated voltage.
| Item | Unit | 11 kV | 22 kV | 33 kV |
|---|---|---|---|---|
| Rated Voltage | kV | 12 | 25 | 35 |
| Maximum Rated Voltage | kV | 15 | 27 | 40.5 |
| Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Continuous Current | A | 400/630 | 400/630 | 400/630 |
| Short-Time Withstand Current (1 sec) | kA (peak) | 25/32.5 | 25/32.5 | 25/32.5 |
| Flash Over Voltage (1 min) Dry/Wet | kV | 50/40 | 60/50 | 80/70 |
| Impulse Withstand Voltage (BIL) | kV | 100/110 | 125/150 | 170/200 |

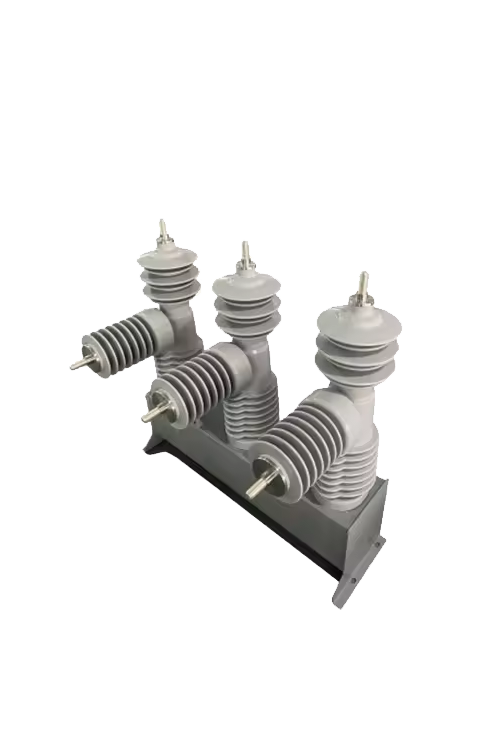

| Support Insulator | Polymer or Porcelain | |||
| Operation | Manual or Motorized | |||
| Apply Standard | IEC 60265-1 / IEC60129 / ANSI 37.41 | |||
| Current Monitoring | CT × 3 ea Equipped | |||
| Automatic Sectionaliser | With Sectionalising Controller | |||
| Scada Operation | Option | DNP3.0, IEC101, or IEC104 | ||
| Smart Function | Option | Mobile Phone Operation and Monitoring | ||
| IoT/Cloud Platform (MQTT) Support | Option | Remote Monitoring and Control on Cloud | ||
| Retrofittable | Manual LBS >> Smart LBS on site | |||
