Sectionalizers

Automated devices that isolate faulted sections to improve power system reliability.

Home / Sectionalizers

Overview

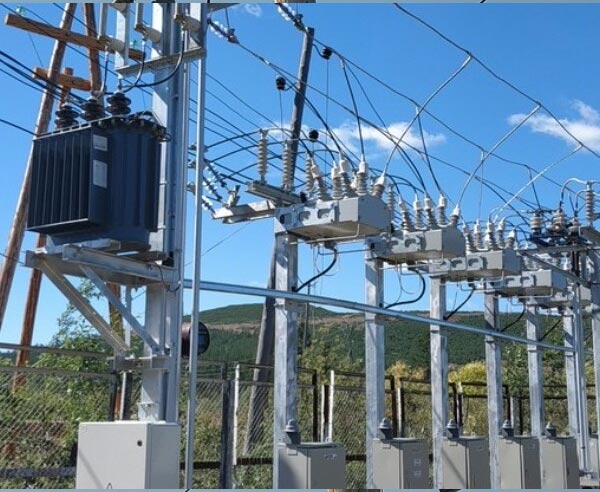

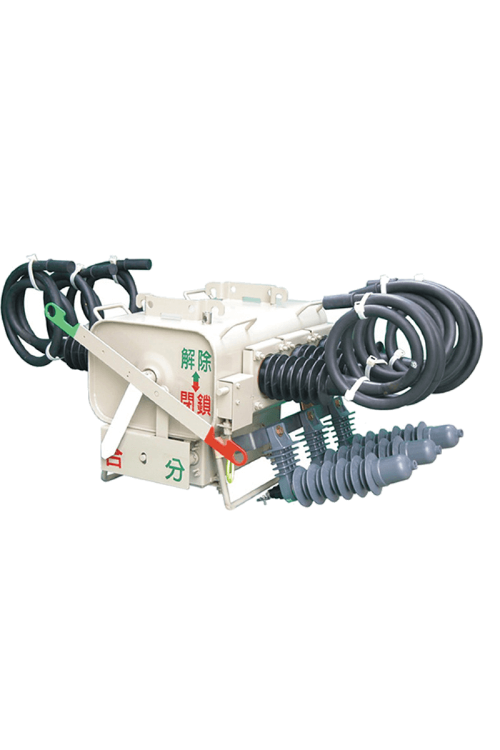

For a long time there had been a strong need in the market for low cost and effective sectionalizing, especially for semi-urban and rural feeders. Long overhead lines with too many branches and limited load, it becomes commercially unviable to install expensive solutions. Sharika’s SmartOn™ SLBS is the right solution for 11 to 36 KV networks with multiple options of control. With strong and efficient mechanical construction with comprehensive suite of automation levels, SLBS can fit every budget. Technical collaboration with S. Korea and matchless build quality with ease of operation & maintenance, SLBS can effectively bring down SAIFI & SAIDI, giving satisfied consumers and recover unserved revenue

Installation & Maintenance Expertise

  • 3 phase gang operation
  • Full Load Current
  • Transformer Magnetizing Current Switching
  • Cable Charging Current Switching
  • Automatic Sectionalising Operation with integrated CT
  • Optional Integrated CVTs for Voltage
  • Field proven heavy duty operating mechanism
  • Front panel as well as remote configuration of protections
  • Easy installation with supplied brackets
  • Suitable for Single / double pole / Structure mounting
  • Industrial Grade Plug n Play control cabling
  • Can be supplied with customized accessories – bird guards, PG Clamps, Covered Conductor tails etc.
  • Specialized Earth-less arching type Las (on request) for direct or indirect lightning strikes
  • Lowest cost of maintenance
  • Rugged yet simple mechanism
  • All parts are site replaceable
  • Basic manual switch can be upgraded to fully automated unit at site

The design ORC unit, capable of handling the mobility caused by Provides the reliable circuit interruption performance without external arc of flame and completely prevents the switch from the arc caused by switching the load currents 400/ 630A at rated voltage.

Ratings

  • Voltage : 12 / 25 / 36 KV
  • Current In : 400/630 A
  • Breaking Current : 400 / 630 A
  • Withstand : 12.5 / 25 kA, 1s
  • BIL : 110/125/170 KV
  • Altitude : up to 3000m
  • Class: M1, M2

Protection & Control

  • Advanced protection functions with accurate fault detection.
  • Coordination with upstream Reclosers for effective sectionalizing.
  • Local Mechanical or Electrical Control.
  • Remote Control from SCADA / Mobile.

Features

  • Material : 302 Stainless Steel
  • Insulation : Polymer / Porcelain
  • Operation : Manual / Motorized / Remote / Autosectionalizing

Telemetry

  • Remote communications supporting all industry protocols
    • IEC 101 / 104
    • DNP 0
    • Modbus
  • Ready Integration with Sharika’s Dnet Cloud Platform
  • Cyber Secured, VPN based remote connectivity through X33™ routing solutions (Powered by Niseva)

Technical Data

Item Unit 11 kV 22 kV 33 kV
Rated Voltage (BIL) kV 15 25 36
Maximum Rated Voltage kV 15 27 40.5
Frequency Hz 50 / 60
Continuous Current A 400 / 630
Rated Frequency Hz 50 / 60
Minimum Line Current (Self Charging) A 1 (2)
FID Open by Fault Trigger Sec Settable Time 1~180 sec (or, Counts 1~4 Option)
Reset Time Sec 180
Inrush Detection Time Ms 0 ~ 100
Short time current withstand, 15 cycle kA 12.5
Current measurement accuracy ±10% (Option: 5%)
Temperature range -40°C to +80°C
Surge current withstand 65KA, per ANSI C37.63
Electromagnetic interference ANSI C37.63
Radio frequency interference ANSI C37.90.2
Program method Wireless Programmable
SCADA System Protocol DNP3.0, or IEC 101, IEC 104
Mobile phone Control and Monitoring Via SMS Message
GPS system (Option) Google Map operation
Compatible use with Existing COS body Yes
